LQ-SL Sleeve Labeling Machine

Short Description:

This machine is used to put the sleeve label on the bottle and then shrink it. It is a popular packaging machine for bottles.

New-type cutter: driven by stepping motors, high speed, stable and precise cutting, smooth cut, good-looking shrinking; matched with label synchronous positioning part, the precise of cut positioning reaches 1mm.

Multi-point emergency halt button: emergency buttons can be set in proper position of production lines so as to make safe and production smooth.


Product Detail

video

Product Tags

APPLY PHOTOS

INTRODUCTION

This machine is used to put the sleeve label on the bottle and then shrink it. It is a popular packaging machine for bottles.

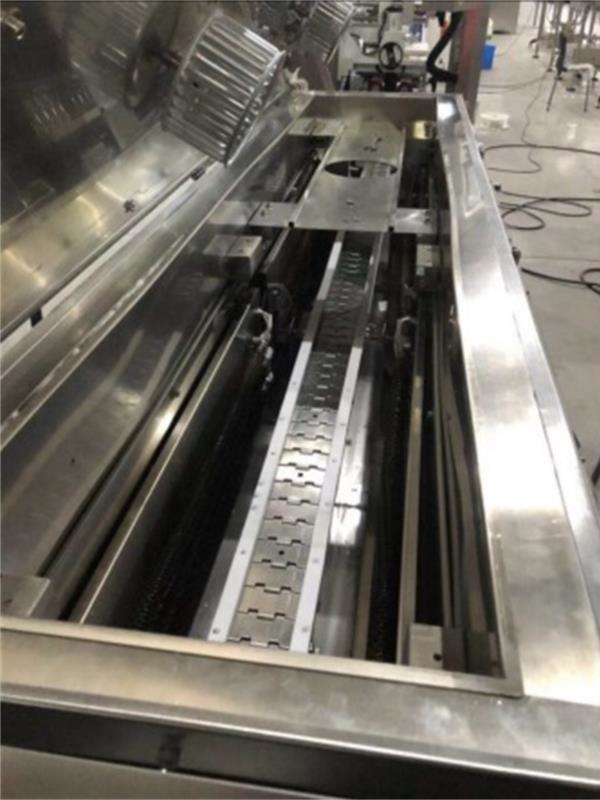

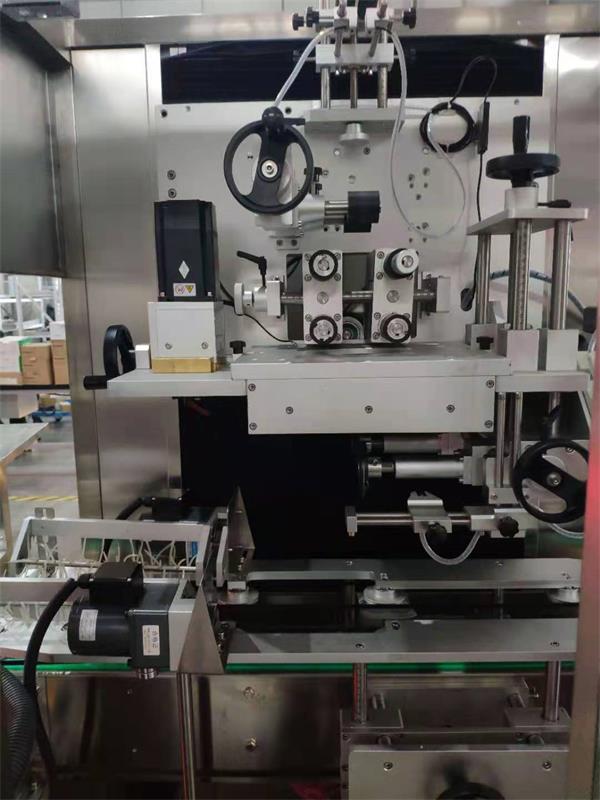

LQ-SL Sleeve Labeling Machine  (1)
LQ-SL Sleeve Labeling Machine  (4)

TECHNICAL PARAMETER

Sleeve

Labeling

Machine

Model

LQ-SL-100M

LQ-SL-200M

Speed

About 6000 bottles/hour

(Considering about the bottle size)

About 12000 bottles/hour

(Considering about the bottle size)

Machine size (L*W*H)

2100mm * 850mm * 2000mm

2100mm * 850mm * 2000mm

Weight

600kgs

600kgs

Powder supply

220V, 50Hz, 1 Ph

220V, 50Hz, 1 Ph

Machine power

1.5KW

1.5KW

Steam

Shrink Tunnel

Length

2m

2m

Conveyor speed

0-35m/min

0-35m/min

Steam pressure

Max. 0.6Mpa

Max. 0.6Mpa

Steam volume

35-50kg/h

35-50kg/h

Machine size

L2000*W400*H1500mm

L2000*W400*H1500mm

Weight

230kg

230kg

Shrink Labels

Materials

PVC,PET,OPS

PVC,PET,OPS

Thickness

0.035-0.13 mm

0.035-0.13 mm

Labels height

30-250 mm

30-250 mm

Packed Bottles

Height

Customized as milk powder can.

Customized as milk powder can.

Material

Glass,Metal,Plastic

Glass,Metal,Plastic

Shapes

Round, square, flat , curved cup-shaped bottles

Round, square, flat , curved cup-shaped bottles

FEATURE

● Unique cutter head in China, the cutter head is completely out of replacement and adjustment.

● Single label feeding tray: moderate height favors label fixing; automatically controlled by micro-computer; free of setting and adjustment, only need to push the button and then label is in automatic detection & positioning; swift and labor-saving for changing labels, absolutely precise cutting-off position.

● Label feeding part: dynamic-force synchronous tension controls label feeding, feeding capability: 90m/min. Stable tension of label feeding part ensures the precise of the length of label, stable and fast feeding and the precise of delivering label and casting label.

● New-type cutter: driven by stepping motors, high speed, stable and precise cutting, smooth cut, good-looking shrinking; matched with label synchronous positioning part, the precise of cut positioning reaches 1mm.

● Multi-point emergency halt button: emergency buttons can be set in proper position of production lines so as to make safe and production smooth.

TERMS OF PAYMENT AND WARRANTY

Terms of Payment:

30% deposit by T/T when confirming the order, 70% balance by T/T before shipping. Or irrevocable L/C at sight.

Warranty:

12 months after B/L date.
