LQ-DL-R Round Bottle Labeling Machine

Short Description:

This machine is used to label the adhesive label on the round bottle. This labeling machine is suitable for PET bottle, plastic bottle, glass bottle and metal bottle. It is a small machine with low price which can put on desk.

This product is suitable for round labeling or semi-circle labeling of round bottles in food, pharmaceutical, chemical, stationery, hardware and other industries.

The labeling machine is simple and easy to adjust. The product is standing on the conveyor belt. It achieves labeling accuracy of 1.0MM, reasonable design structure, simple and convenient operation.

Send email to us

Product Detail

video

Product Tags

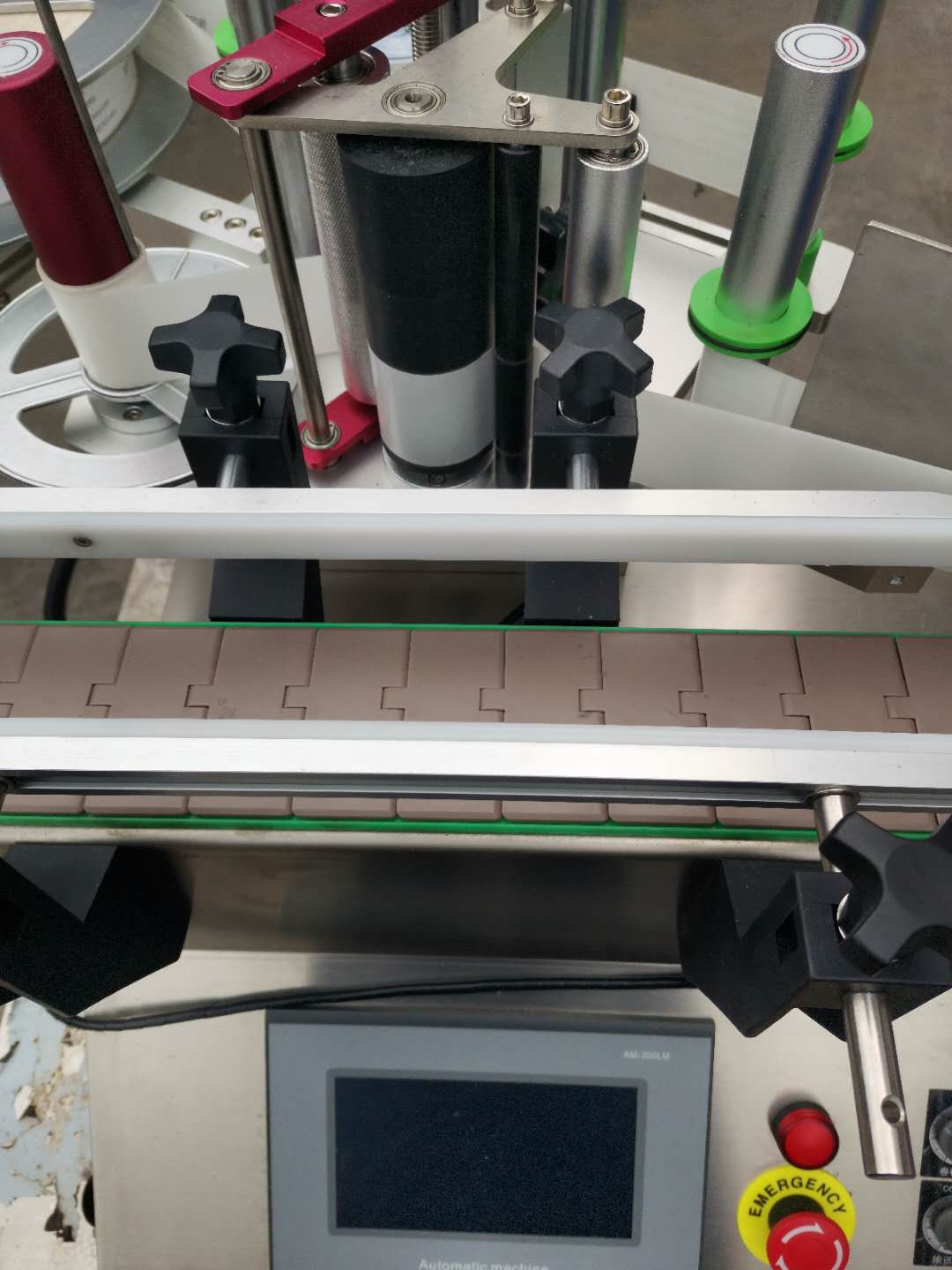

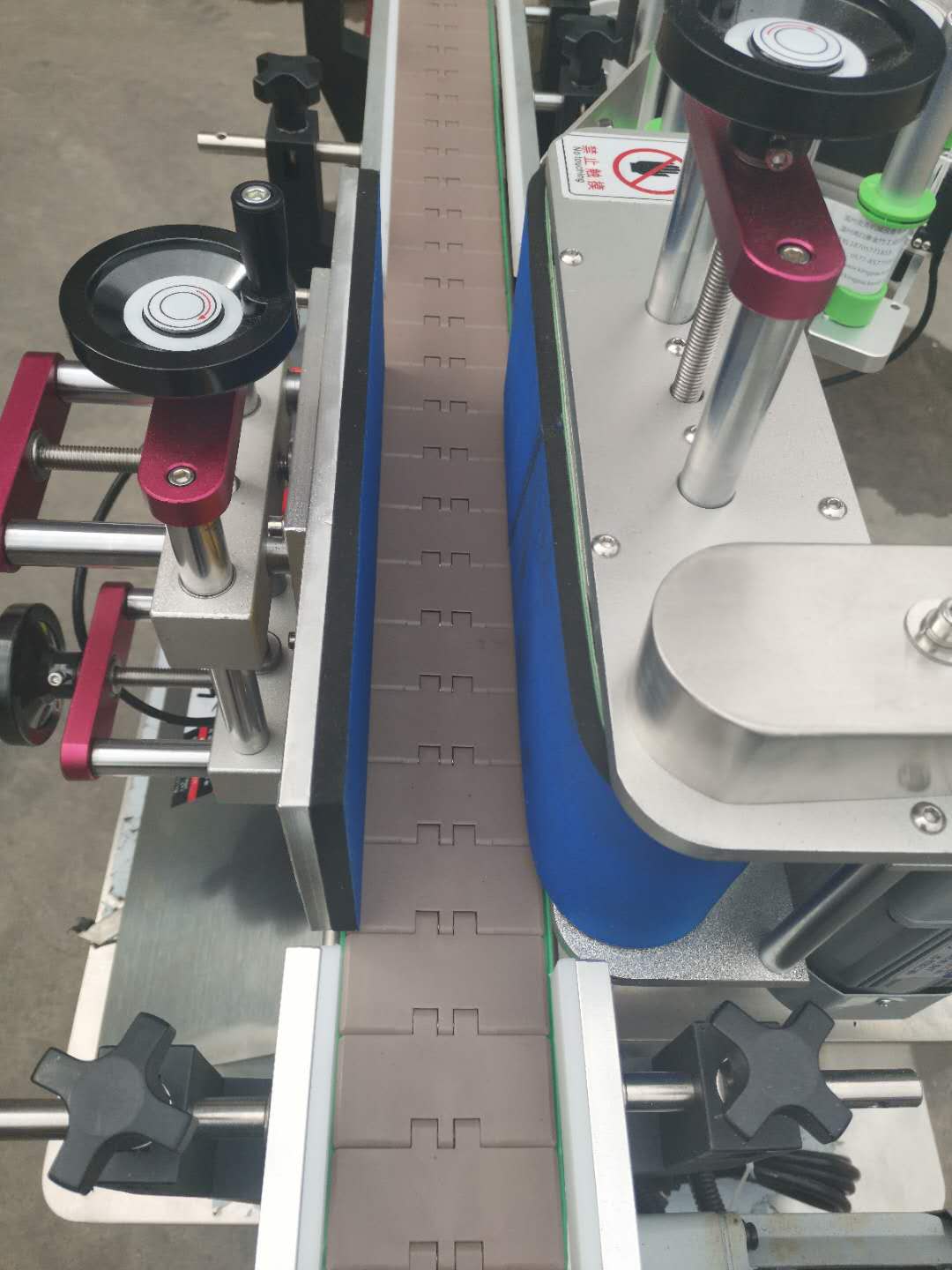

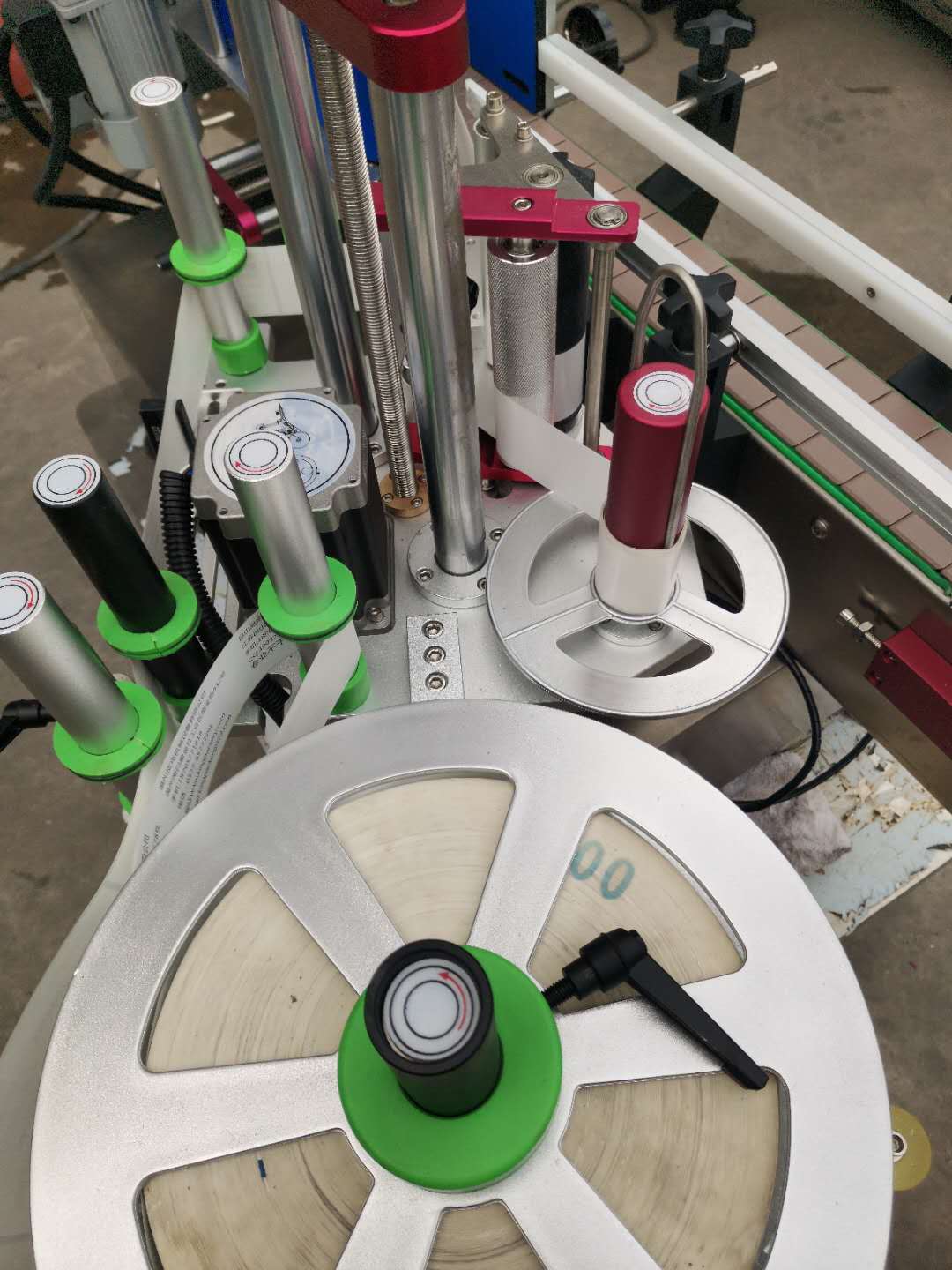

APPLY PHOTOS

INTRODUCTION AND OPERATION PROCESS

Introduction:

This product is suitable for round labeling or semi-circle labeling of round bottles in food, pharmaceutical, chemical, stationery, hardware and other industries.

The labeling machine is simple and easy to adjust. The product is standing on the conveyor belt. It achieves labeling accuracy of 1.0MM, reasonable design structure, simple and convenient operation.

Operation process:

Put the product on the conveyor by manual (or automatic feeding of the product by other device) - product delivery - labeling (automatic realized by the equipment)

TECHNICAL PARAMETER

Machine Name	Round Bottle Labeling Machine
Power supply	220V / 50Hz / 400W / 1Ph
Labeling Speed	20-60 pcs/min
Labeling Accuracy	±1mm
Product size	Height：30 - 200 mm Diameter：25 - 110 mm
Label size	Width：20 - 120 mm Length：25 - 320 mm
Inner. Dia. of roller	76 mm
Outer Dia. of roller	300 mm
Machine size	1200 mm * 600 mm * 700 mm
Machine weight	100 KG

FEATURE

1. High precision and stability of labeling.

2. Made of stainless steel material, reasonable structure, beautiful appearance, small and light.

3. Intelligent control: automatic photoelectric tracking, automatic detection function, to prevent leakage and label waste, 7-inch touch screen debugging data.

4. The whole machine is easy to adjust for different size bottle and different label size.

5. The machine is light and convenient.

6. Taiwan optical fiber amplifier, digital adjustment accuracy.
