LQ-NT-2 Tea Bag Packaging Machine (Inner+Outer Bag)

Short Description:

This machine is used to package tea as flat bag or pyramid bag. It packages different tea in one bag.

The turntable type metering mode is with high precision. It can greatly improve the production efficiency of equipment.

Automatic tension adjusting device for packaging material.

The touch screen, PLC and servo motor provide complete setting functions. It can adjust many parameters according to the demand, provides the user maximum operating flexibility.


Product Detail

video

Product Tags

APPLY PHOTOS

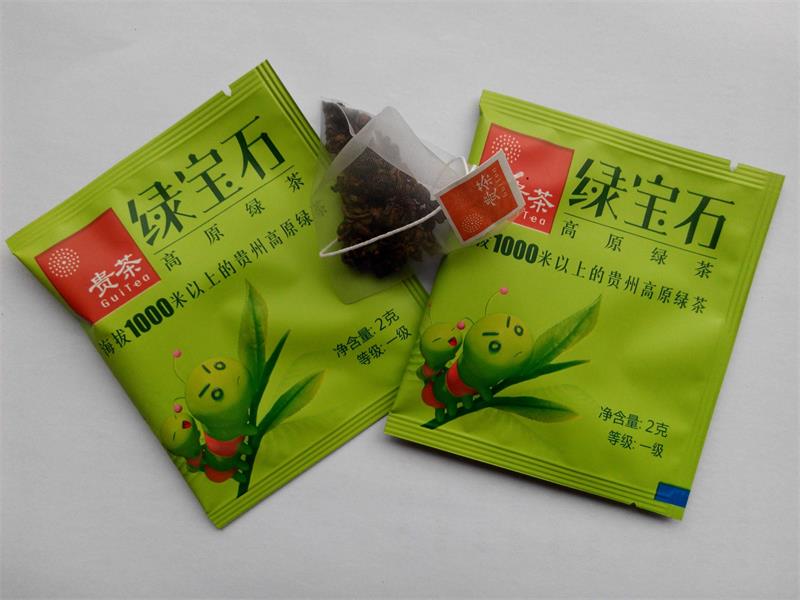

Outer Bag (1)

TECHNICAL PARAMETER

Machine Name Nylon Tea Bag Packaging Machine (Inner+Outer Bag)
Working speed About 50 bags/min
Inner bag film 120mm,140mm,160mm,180mm
Bag type Triangle bag or flat bag
Sealing method Inner bag: Ultrasonic
Outer bag: Heat sealing
Outer bag size L: 80-140mm, W: 70-120mm
Weight range 0.5-20g
Filling accuracy ±0.2 grams/bag(Depend on the coffee material)
Weighing system Weigher
Max. 6 heads weigher
Compressed power 0.6 MPa, 200L/min
Power supply 220V,50Hz,1Ph,2kw
Weight 650kg
Overall dimensions 3663mm*1040mm*2015mm

INTRODUCTION AND FEATURE

Introduction: This machine is used to package tea as flat bag or pyramid bag. It packages different tea in one bag.

1. A single button can easily switch between flat packaging and triangular packaging bags.

2. Packing speed can be up to 3000 bags per hour which depends on material.

3. The machine can use the packing film with line and tag.

4. According to the characteristics of materials, electronic weighing system can be installed. The electronic weighing system is suitable for single materials, multi-materials, irregular-shaped materials, etc. , Each of the electronic weighing systems can be separate and flexibly control, according to the requirement.

5. The turntable type metering mode is with high precision. It can greatly improve the production efficiency of equipment.

6. Automatic tension adjusting device for packaging material.

7. The touch screen, PLC and servo motor provide complete setting functions. It can adjust many parameters according to the demand, provides the user maximum operating flexibility.

8. Automatic fault alarm and automatic shutdown.

9. The whole machine can automatically complete the functions of cutting, measuring, bag making, sealing, cutting, counting, finished product conveying and so on.

10. The precise control system is adopted to adjust the action of the machine. The machine has compact structure, man-machine interface design, easy operation, adjustment and maintenance.

11. The bag length is driven by servo motor, the bag length is stable, the positioning is accurate and the debugging is convenient.

12. The inner bag adopts ultrasonic sealing and cutting technology to seal and cut firmly and reliably.

13. The inner and outer bags can be independently switched, which can be linked and separately worked.

TERMS OF PAYMENT AND WARRANTY

Terms of Payment:

30% deposit by T/T when confirming the order,70% balance by T/T before shipping. Or irrevocable L/C at sight.

Warranty:

12 months after B/L date.
