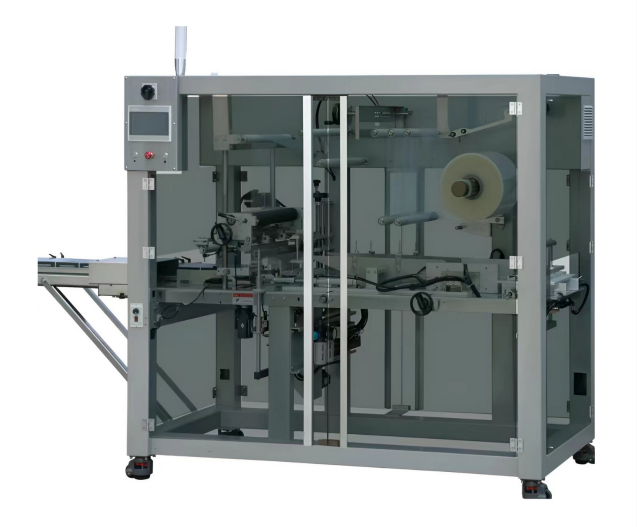

LQ-TB-480 Cellophane Wrapping Machine

LQ-TB-480 Cellophane Wrapping Machine Featured Image
  • LQ-TB-480 Cellophane Wrapping Machine

Short Description:

This machine is widely used in medicine, health care products, food, cosmetics, stationery, audio-visual products and other industries of a variety of single big box packaging or a number of small box film (with gold cable) packaging .


Product Detail

Product Tags

LQ-TB-480 Cellophane Wrapping Machine
LQ-TB-480 Cellophane Wrapping Machine-3
LQ-TB-480 Cellophane Wrapping Machine-2
LQ-TB-480 Cellophane Wrapping Machine-4

Technical Parameter:

Packing Material BOPP film and gold tear tape
Packing Speed 35-60 packs/Min
Packing Size Range (L)80-360*(W)50-240*(H)20-120mm
Electric Supply & Power 220V 50Hz  6kw
Weight 800kg
Overall Dimensions (L)2320×(W)980×(H)1710mm

Features:

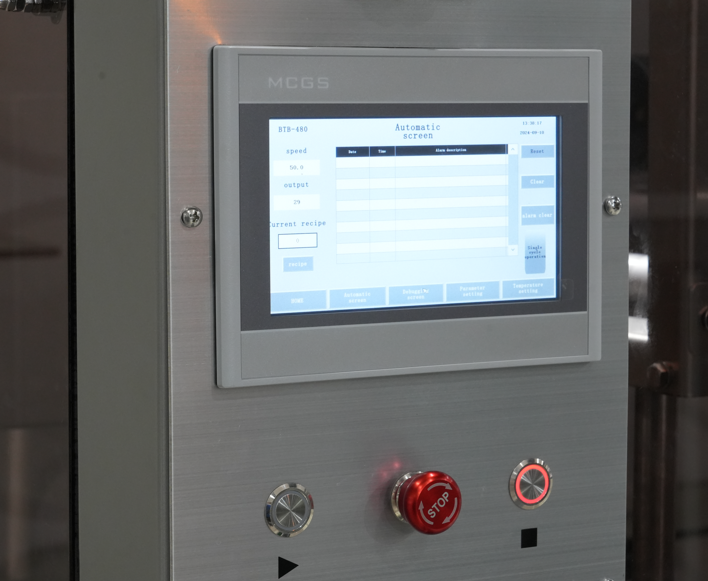

The work of this machine is to rely on a series of servo motor inside the machine to drive various connecting rods and components to complete, using multi-function digital frequency conversion stepless speed regulation, PLC programming control technology, automatic box feeding, automatic counting, touch display to achieve man-machine interface, suction film fall; And can be used with other production lines.

LQ-TB-480 Cellophane Wrapping Machine-5
LQ-TB-480 Cellophane Wrapping Machine-7
LQ-TB-480 Cellophane Wrapping Machine-6
LQ-TB-480 Cellophane Wrapping Machine-8
