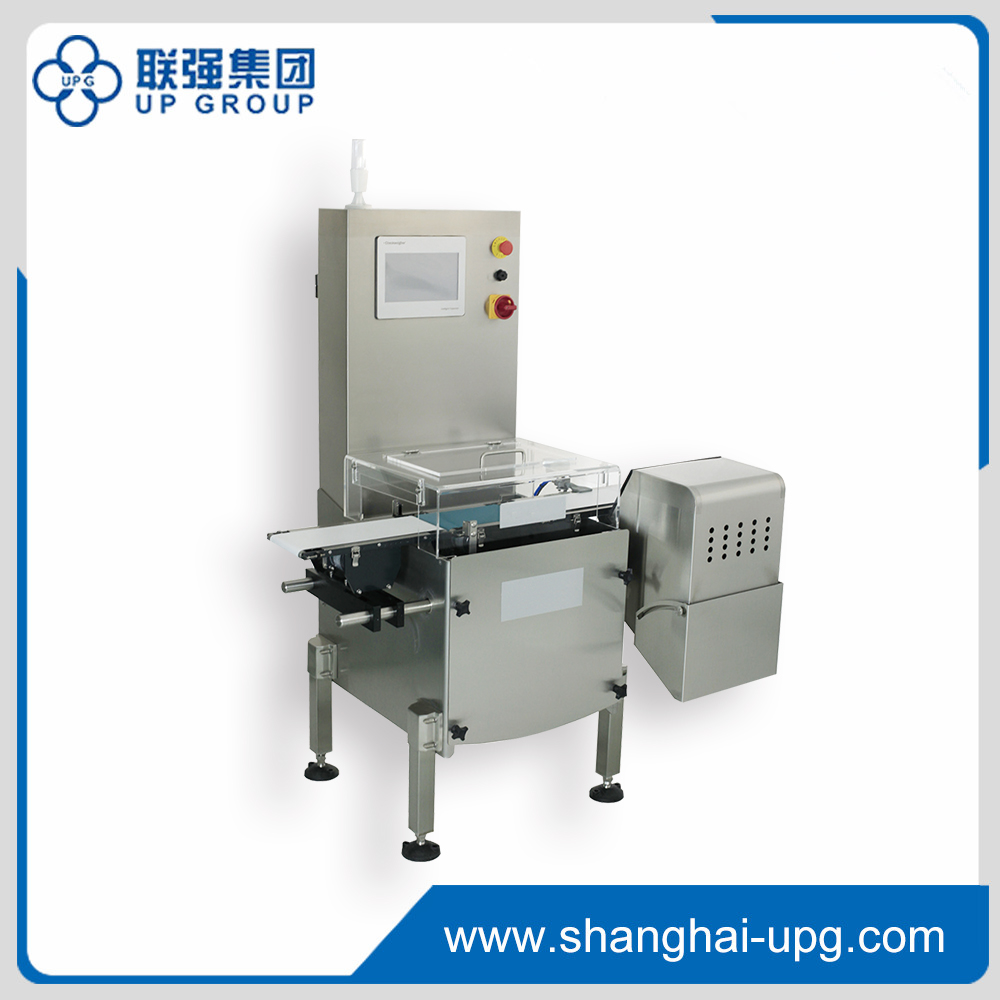

A Series Checkweigher

High-speed and high-precision models with a dynamic accuracy of up to +0.1g and a weighing speed of up to 300 times per minute.

150/220/300/360mm of belt width options, and the range is 200g,1kg,4kg.

With 232 weight and pulse feedback, supports label printing and filling screw adjustment.

Product Detail

TECHNICAL PARAMETER：

Mode	150(220)-D20	220(300)-D28	300(360)-D32
Weighing Range	2~200	2~1000	2~3000
Minimum Scale	0.01	0.1	0.1
Best Accuracy	±0.1	±0.2	±0.3
Max Throughput	300	200	150
Parameter Setting	By intelligent product learning
Weight Belt Width	150	220	220
Weight Belt Length	350/450/550	350/450/550	350/450/550
Belt Heigh	700-820/780-900 or Customized
Alarm Mode	Aural and visual
Rejection Option	Air Jet, Pusher,Flipper, Flap Down, Down Belt
